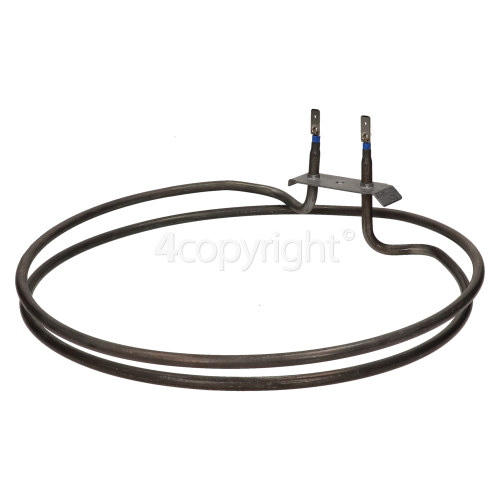

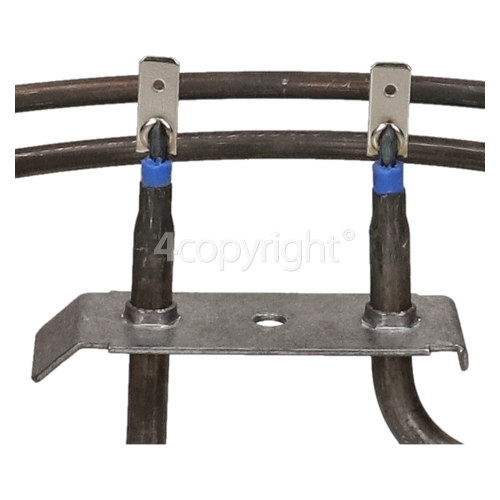

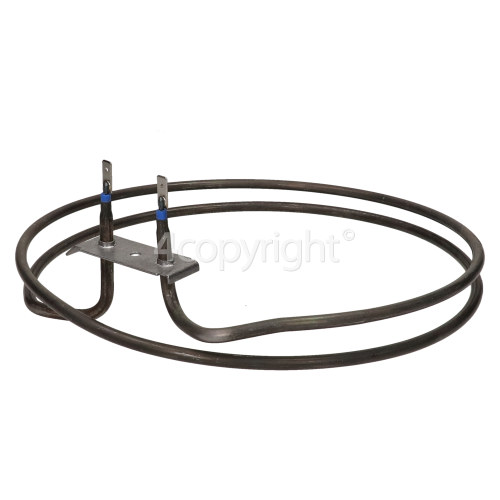

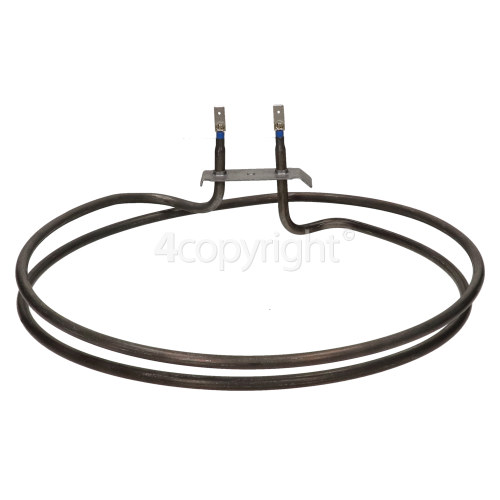

Fan Oven Element 2500W

Replace your faulty oven element with this 2500 Watt element. Learn more about oven elements below:

What does the fan oven element do?
The fan oven element is responsible for heating the oven cavity in order to cook the food. In an electric cooker when the cooker knob is turned on, electricity flows to the element which causes it to heat up. Once the element reaches the desired temperature then the electricity flow switches on and off to maintain the temperature. This process is controlled by the thermostat.

Is the fan oven element causing the problem?
The following faults typically indicate a problem with the oven element:

o The fan oven is blowing out cold air
o The oven won't heat up at all
o The element doesn't heat up during operation
o There are bright spots or uneven patches on the element during use.
*Remember that a blown oven element may not be the only fault that can cause these issues to arise.

When you should replace an oven element
Fan oven elements are not consumable parts and they only need to be replaced if they fail. Oven elements fail when the internal element filament burns out, this can cause the element to short circuit. There may be visible signs the element has blown such as a split, bulge, or blow hole on the element.

There are a number of factors that can cause an oven element to blow. Damage due to the expansion and contraction of the element coils caused by the element constantly heating up and cooling down is a very common cause. While other causes of element failure can include overheating as a result of a failed thermostat or in some cases a build-up of grease causing the fan motor to run slowly.

Please check model fit list to ensure this part is correct for your model.

Specification:

• 2500 watts
• 2 Turn
• Height 240 mm
• Width 255 mm
• Bracket 70 mm
• Tags 38 mm

Manufacturers Part Number

• 766246

Alternative Part Numbers

• 082605135
• C00199665

EAN

• 5031681562438
